Specifications
| Make | HYUNDAI |
| Model | HY-CubeGL |
Dry Van
HYUNDAI HY-CubeGL Specifications

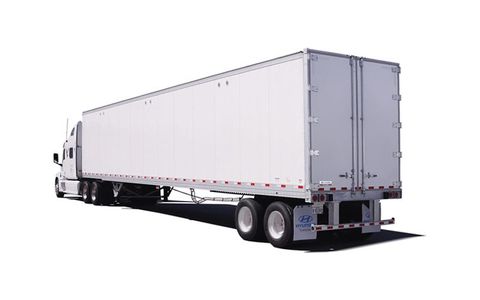

Hyundai Translead’s best selling trailer, the HT HY-Cube®, offers a greater interior width for increased load capacity plus double decking capabilities. The snap-in plastic liners are made of recycled materials and are strong and easy to repair. A 101″ lining-to-lining width offers up to 4.050 cubic feet of interior volume.
General Specifications
Lenght Exterior
53′ 0″
Width Exterior
102.36
Capacity
68,000 GVWR 4050 cu. ft. of interior volume
Tare Weight
14,200 lbs
Suspension
Hedrickson Vantraxx HKANT40K Air Ride
Tires
Low profile 22.5 radial tires.
Axles
Five inch round, 22,500 lb. rating, 77.5″ track.
Oil Seals
Stemco Platinum Performance.
Upper Coupler
A.A.R. rated king pin, 3.40″ deep. Laminated Oak 1-3/8″ nominal thickness with three screws per floorboard. With a .125″ thick steel×12″ deep diamond plate threshold plate.
Specifications and available options may vary by model, application, configuration, and production date. Contact the dealer to confirm specifications for the specific unit shown.
