Specifications
| Make | HYUNDAI |
| Model | Flatbed 48" |
Flatbed
HYUNDAI 48" Specifications

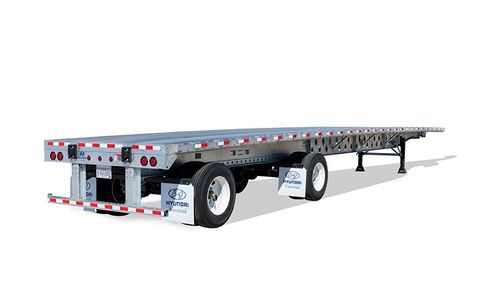

Hyundai Flatbed-With all structural steel hot dipped galvanized, the Hyundai DuraLite is fully protected against the elements and road chemicals.
General Specifications
Lenght Exterior
48' 0'
Width Exterior
102'
Capacity
68,000 lbs in 10' and 55,000 lbs in 4'
Tare Weight
9,950
Suspension
Hendrickson Intraax AAT23K Air Ride with 121" Fixed spread
Tires
Low Profile 22.5 radial tires
Axles
5 inches round, 22,000 lb. rating 77 - 1/2" track
Rear Deck Height
maximum 54 1/2"
Side Rails
Aluminum Extruded profile with Aluminum rub rail, Stack pockets.
Oil Seals
Stemco Platinum Performance
Front Plate
Aluminum Extruded, 6 1/2 high
Rear Plate
Aluminum Extruded, 13" high
Kin Pin
Holland King pin located at 36"
Upper Coupler
A.A.R. rated king pin, 3 3/8 deep
Specifications and available options may vary by model, application, configuration, and production date. Contact the dealer to confirm specifications for the specific unit shown.
