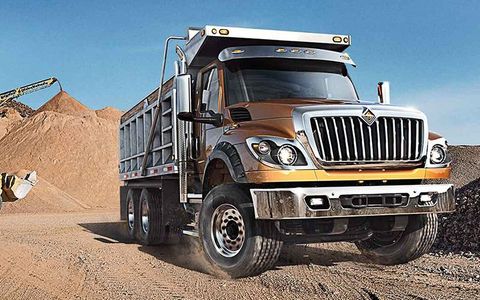

INTERNATIONAL HV™ SERIES

Specifications

Make	INTERNATIONAL
Model	HV™ SERIES

AI overview

Overview

The INTERNATIONAL HV™ SERIES is a heavy-duty vehicle known for its robust performance and reliability. Buyers typically compare specifications such as engine capacity, towing capacity, and payload limits. This unit is in excellent condition, having been well-maintained and inspected, making it a dependable choice for various heavy-duty applications.

General Specifications

GVW

51,000 - 73,000 lbs.

Axle Configurations

4x2, 4x4, 6x4, 6x6, 8x6 Tridem

Cab Interior Trim Levels

Classic, Diamond

Cab/Sleeper Configurations

Day Cab, Extended Cab, Crew Cab (no sleepers)

Models

107" BBC Set-Back Front Axle, 107" BBC Set-Forward Front Axle, 113" BBC Set-Back Front Axle, 113" BBC Set-Forward Front Axle

Wheelbase Range

136 - 340"

Engines

Cummins® B6.7: 200 hp, 520 lb.-ft. torque, up to 325 hp, 750 lb.-ft. torque
International® A26: 365-515 hp, 1250-1850 lb.-ft. torque

Exhaust Systems

Single canister after-treatment device, Frame Mounted Right Side, Back, or Under Cab Short Horizontal Tailpipe Single Vertical Tailpipe, Right Side Back of Cab

Frame Rails

Heat Treated Alloy Steel 120,000 PSI 11.25" x .5" thick Super Single Rail

Front Axles

Dana Spicer: Non-Driving: 10,000 - 22,000 lbs.
Fabco: Driving: 10,000 - 22,000 lbs.
Meritor: Non Driving: 10,000 - 22,000 lbs.; Driving: 10,000 - 18,000 lbs.

Front Suspensions

Spring Multileaf: 14,000 - 20,000 lbs.
Parabolic Taperleaf: 8,000- 23,000 lbs.

Rear Axles

Single Rear Axle (4x2) : Meritor : Single Reduction: 17,000 - 30,000 lbs., Double Reduction: 26,000 - 38,000 lbs*, Two-Speed: 21,000 - 23,000 lbs., Dana : Single Reduction: 17,500 - 31,000 lbs., Two-Speed: 19,000 - 23,000 lbs.
Tandem Rear Axle (6x4) : Meritor: Single Reduction: 34,000 - 52,000 lbs., Dana: Single Reduction: 46,000 lbs.

Rear Suspensions

Chalmers: 23,000 - 52,000 lbs., Hendrickson: RT: 34,000 - 52,000 lbs., HAS: 23,000* - 46,000 lbs. HMX: 40,000 - 46,000 lbs. Primaax: 20,000 - 46,000 lbs., 69,000 lbs. (Tridem), Link: 46,000 lbs., International: 20,000 - 40,000* lbs.

Transmissions

Manual: Eaton: 6, 8LL (10), 9ALL (11), 13, 15, 18 speed *
Automated Manual: Eaton UltraShift PLUS: 10, 11, 13, 18 speed, Eaton Fuller Advantage: 10 speed
Automatic: Allison Automatic: EVS, RDS, HS series * (HVMRD 6, 10, 11, and 13 only)

Alternators

Leece-Neville: 12 Volt, 160 - 325 Amp
Delco Remy: 12 Volt, 165 - 240 Amp

Battery Systems

JCI : 12 Volt 1400 - 2100 CCA, Fleetrite® : 12 Volt 1320 - 3800 CCA, Deka: 12 Volt 2775 CCA

Brakes

Air Disc Brakes with ABS, Optional Traction Control, Optional Electronic Stability Program with Traction, Air Disc Brakes

Fuel Tanks

40 - 120 Gallons, Single or Dual, Non-Polished or Polished Aluminum, Mounted Right or Left Side Under Cab

Headlights

Halogen

Power Steering

Single Gear Power, Dual Gear Power on Front Axle 16,000 lbs. And Above

Tires

Continental, Michelin, Goodyear, Bridgestone

Specifications and available options may vary by model, application, configuration, and production date. Contact the dealer to confirm specifications for the specific unit shown.
