Specifications

Make	INTERNATIONAL
Model	HX® SERIES

AI overview

Overview

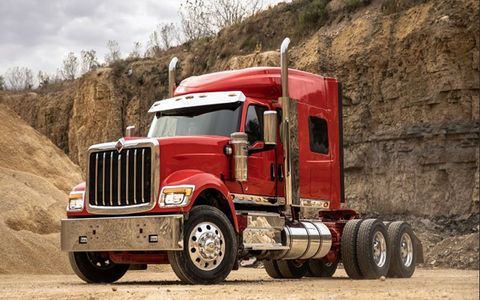

The INTERNATIONAL HX® SERIES is a heavy-duty vehicle designed for robust performance in demanding conditions. Buyers typically compare specifications such as engine power, towing capacity, and payload capabilities. This unit is in excellent condition, having been well-maintained and inspected, ensuring reliability for various heavy-duty applications.

General Specifications

GVW

52,000 - 92,000 lbs.

Axle Configurations

6x4, 8x6

Cab Interior Trim Levels

Diamond, Diamond Elite

Cab/Sleeper Configurations

Day Cab, 56" Low and High Sleeper Cabs, 73" High Sleeper Cab

Models

HX520 120” BBC, Set-Forward Front Axle Truck or Tractor, HX620 119” BBC, Set-Back Front Axle Truck or Tractor

Engines

Cummins® X15 15L: HX520 / HX620: 430-605 HP, 1650-2050 lb-ft. torque
International® A26 : HX520 / HX620: 370-515 HP, 1350-1850 lb-ft. torque

Exhaust Systems

Switchback After Treatment Device: Single or Dual Vertical Stacks
Vertical After Treatment Device: Single Vertical Stack

Frame Rails

Heat Treated Alloy Steel 120,000 PSI

Front Axles

HX520 - Meritor: 12,000 – 20,000 lbs.
HX620 SBA - Dana: 16,000 – 22,000 lbs., Meritor: 12,000 – 22,000 lbs.

Front Suspensions

HX520 - Multi-leaf: 20,000 lbs., Parabolic Taper-leaf: 12,000 – 20,000 lbs.
HX620 - Multi-leaf: 14,000 – 23,000 lbs., Parabolic Taper-leaf: 13,200 – 22,000 lbs., Slipper- Type: 20,000 – 24,000 lbs.

Rear Axles

Tandem Rear Axles - Dana: 40,000 – 52,000 lbs. Single and Two Speed, Meritor: 40,000 – 70,000 lbs. Single and Double Reduction
Tridem Rear Axles - Meritor: 53,000 - 69,000 lbs.

Rear Suspensions

Spring Suspensions - Chalmers: 40,000 – 52,000 lbs., Hendrickson HAULMAAX EX: 40,000 -52,000 lbs., Hendrickson R, RT: 40,000 – 80,000 lbs.
Air Suspensions - Hendrickson HAS: 40,000 – 46,000 lbs. 55" and 60" spacing, Hendrickson PRIMAAX® EX: 46,000 – 52,000 lbs. 55", 60", 72",spacing, Hendrickson PAX Tridem: 69,000 lbs.

Transmissions

Manual: Eaton: 8LL (10), 9ALL (11), 13, 18 speed
Automated Manual: Eaton UltraShift PLUS: 8LL (10), 9ALL (11), 13, 18 speed Eaton Fuller Advantage: 10 speed
Automatic: Allison EVS, RDS, OFS Series

Alternators

Delco Remy: 165 – 300 amp.
Leece-Neville: 160 – 240 amp.

Battery Systems

1,980 - 3,800 CCA's

Brakes

Traction Control, Electronic Stability Control (ESP), Bendix® Wingman® Advanced and Bendix® Wingman® Fusion

Fuel Tanks

60 – 240 Gallons, Single or Dual, Polished or Non-Polished, LH Mounted Under Cab or Dual Under Cab or Back of Cab, 24" or 26" Diameter

Headlights

Halogen Headlamps With LED Daytime Running Lights and Turn Signals

Specifications and available options may vary by model, application, configuration, and production date. Contact the dealer to confirm specifications for the specific unit shown.
